DG/ZDG Boiler Feed Pump

Suitable Applications:

DG series segmented multistage centrifugal pump uses tension bolts to connect the water inlet, middle section and outlet section into a whole product. It is used in boiler feed water and other high temperature clean water. This series has many different types of products, so it has a large range of applications. Also, it has better performance and higher efficiency than average level.


Working Parameters:

  • Flow: DG medium and low pressure boiler feed water pump 4-185m /h
  • ZDG high temperature boiler feed water pump: DG sub-high pressure, high pressure boiler feed water pump 12~500 m/h
  • Liquid Temperature: Dg type medium and low pressure boiler feed water pump ≤105℃
  • ZDG high temperature boiler feed water pump: DG type sub-high pressure, high pressure boiler feed water pump ≤160℃
  • Head: DG medium and low pressure boiler feed water pump 50-600m
  • ZDG high temperature boiler feed water pump 100-600m: DG sub-high pressure, high pressure boiler feed water pump 550-1980m
  • Rotating speed: 2960r/min
  • Product Detail

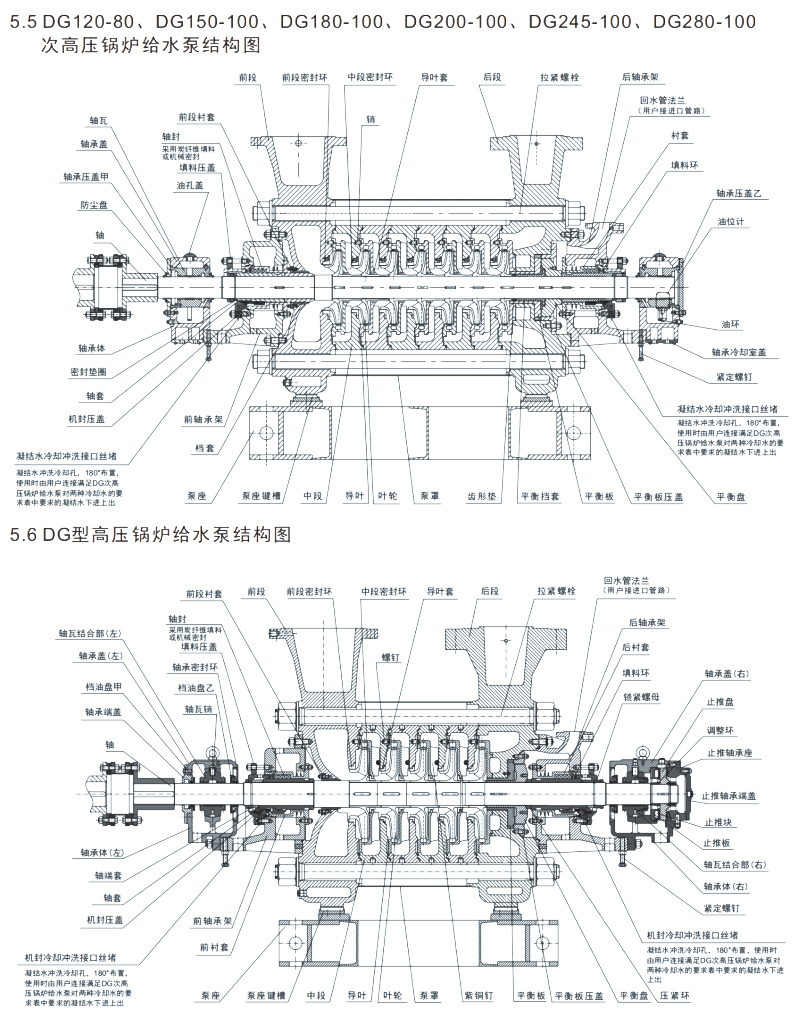

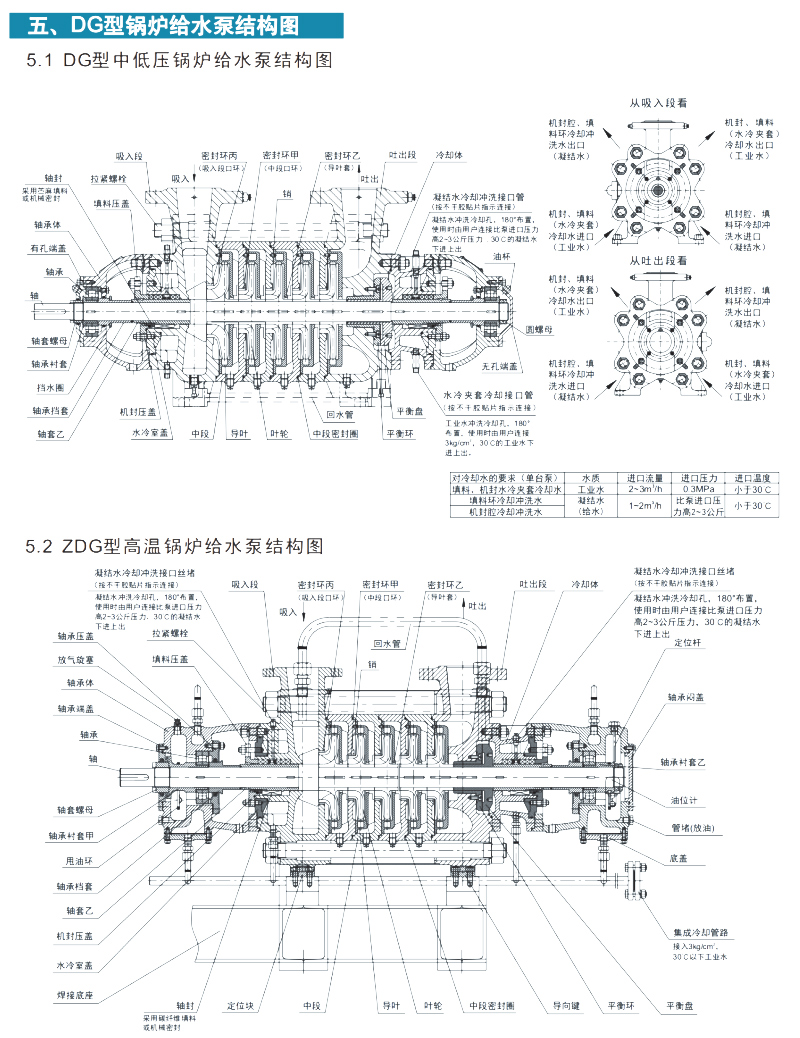

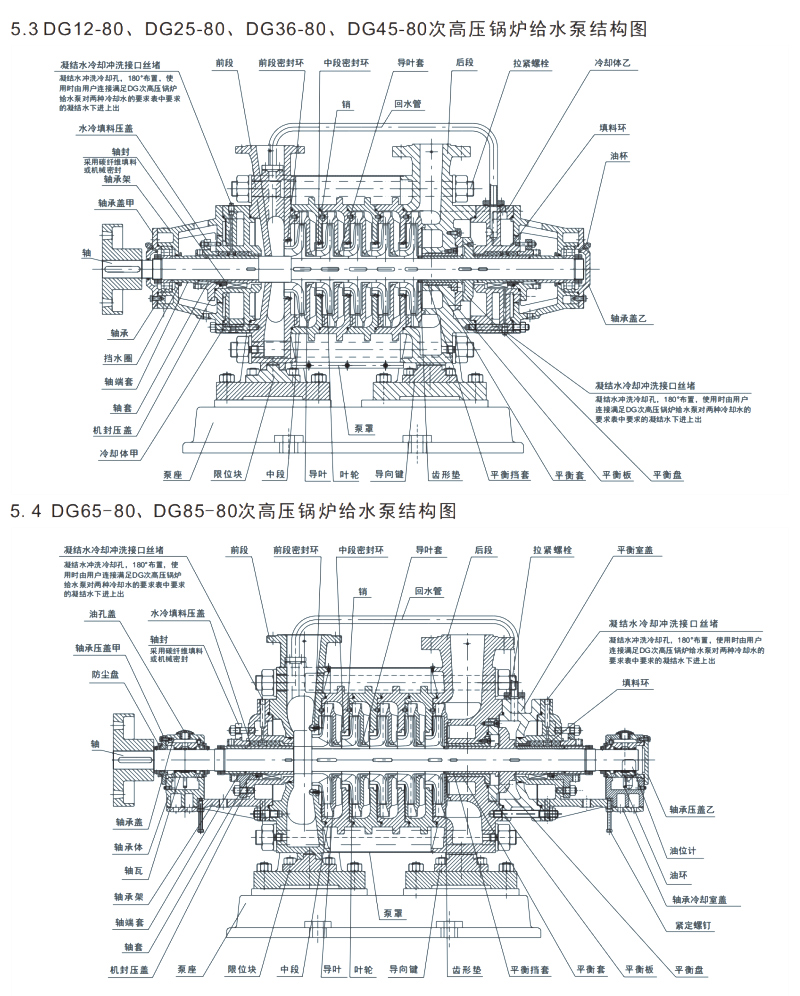

    Technical Drawings

    Product Tags

    DG Type Boiler Feed Pump CN

    Advantages of DG:

    Performance

    Water conservancy components are designed with CFD flow field analysis technology



    Dimensional accuracy

    The impeller and guide vane are precision casting, smooth runner and high dimensional accuracy

    The rotor is dynamically balanced, and the accuracy level is higher than the industry average leve



    Standards:

    DG medium and low pressure boiler feed water pump complies with GB/T 5657-1995

    ZDG high temperature boiler feed water pump and DG sub-high pressure, high pressure boiler feed water pump complies with GB/T 5656-1995

    DG high pressure boiler feed water pump complies with JB/T8059-200X

    Related Key Words:

    Types of boiler feed pump,boiler pressure pump,boiler booster pump,boiler feed water pump types,high pressure boiler feed pump,high pressure boiler feed water pumps,etc.
