HD Series Vertical Diagonal Flow Pump

Suitable Applications:

It is mainly used in power plant cooling water circulating pumps, sea water circulating pumps in desalination plants, vaporization pumps for liquefied natural gas, etc. It can also be used for water supply and drainage in cities, industrial mines and farmland.


Working Parameters:

  • Flow Rate: 0.27m3/s-16.7m3/s
  • Head: 5.7m-60m
  • Liquid Temperature: Up to 55°C
  • Liquid: Clear water, rain water, sea water, sewage, etc.
  • Product Detail

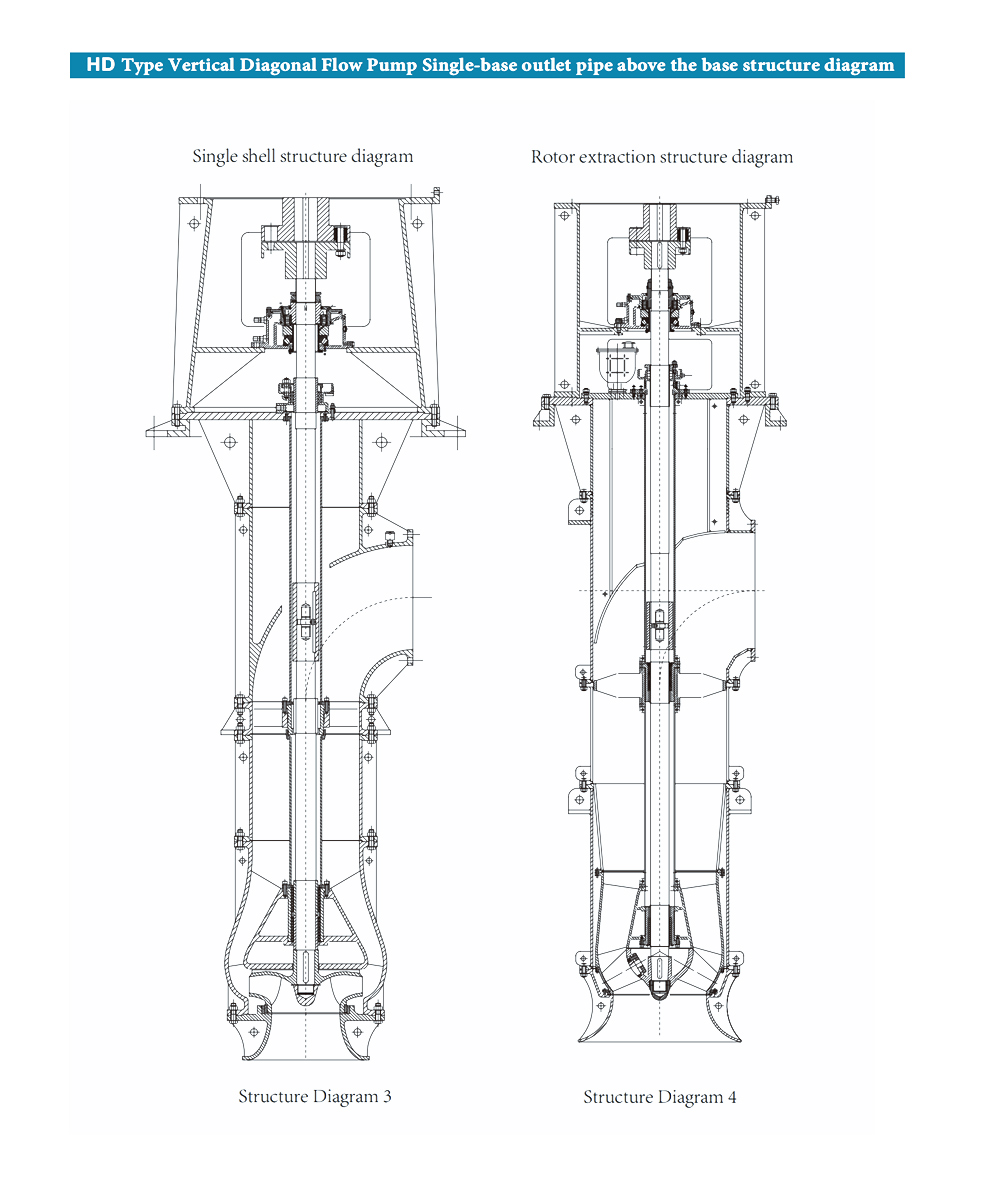

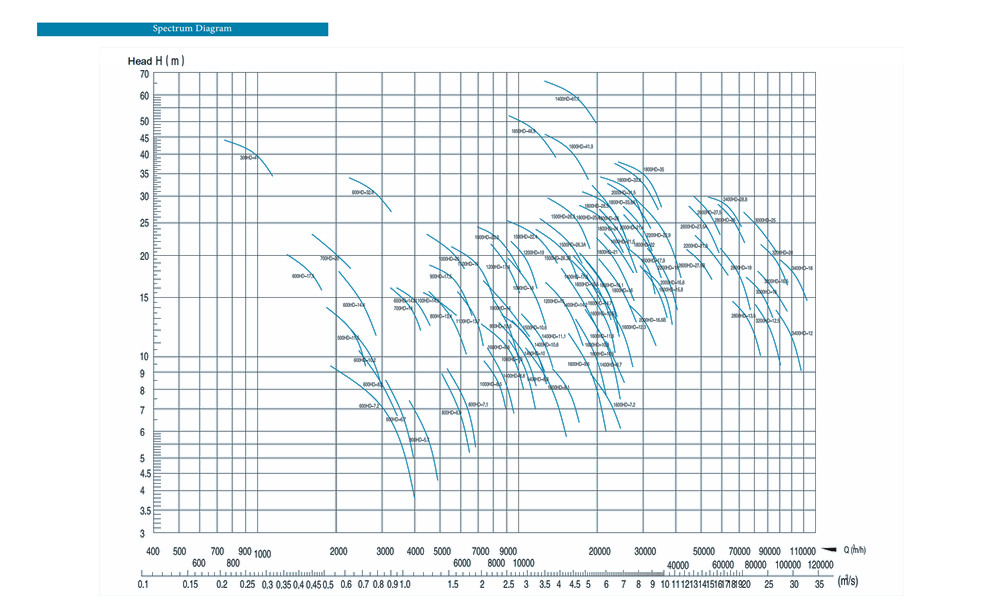

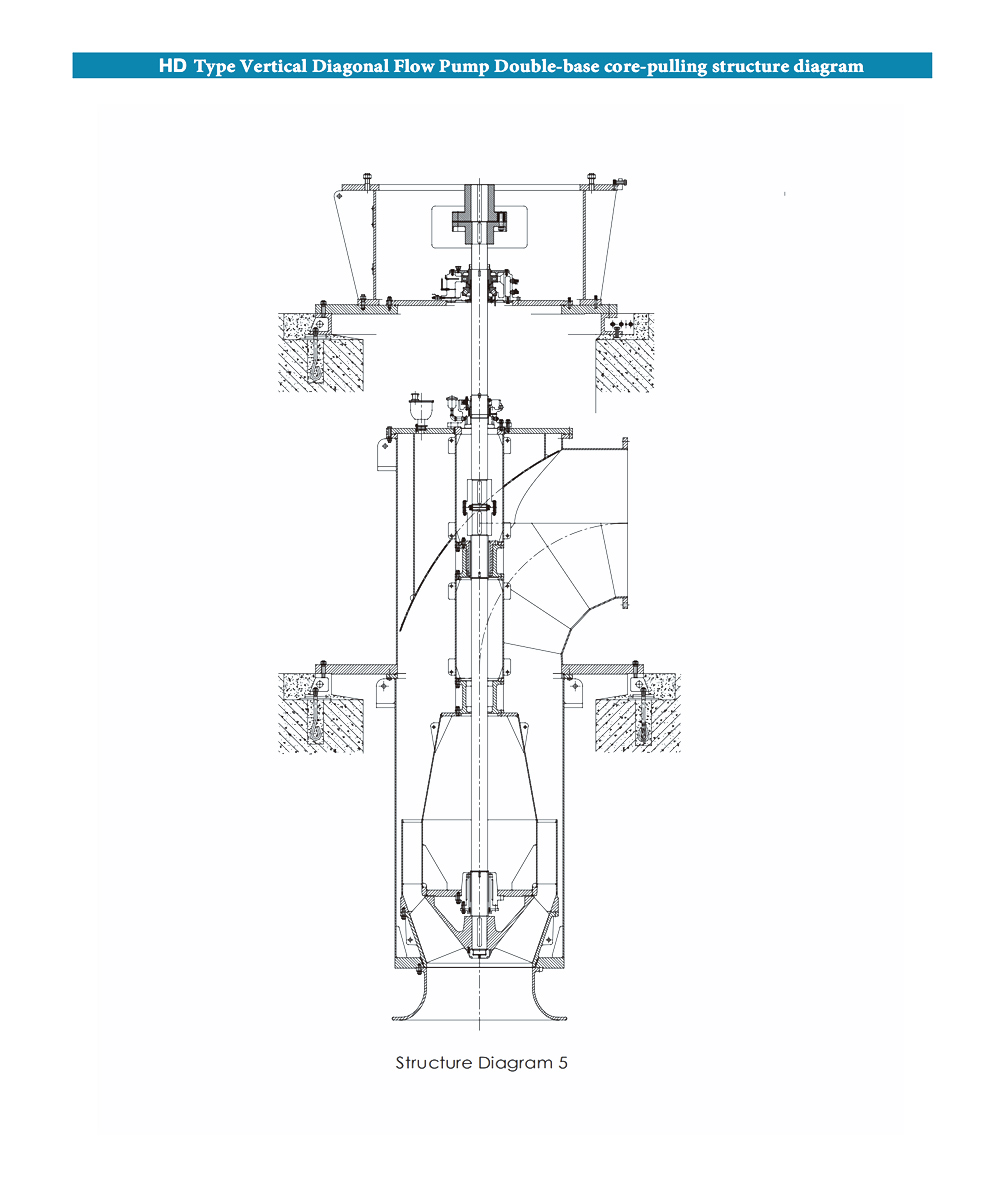

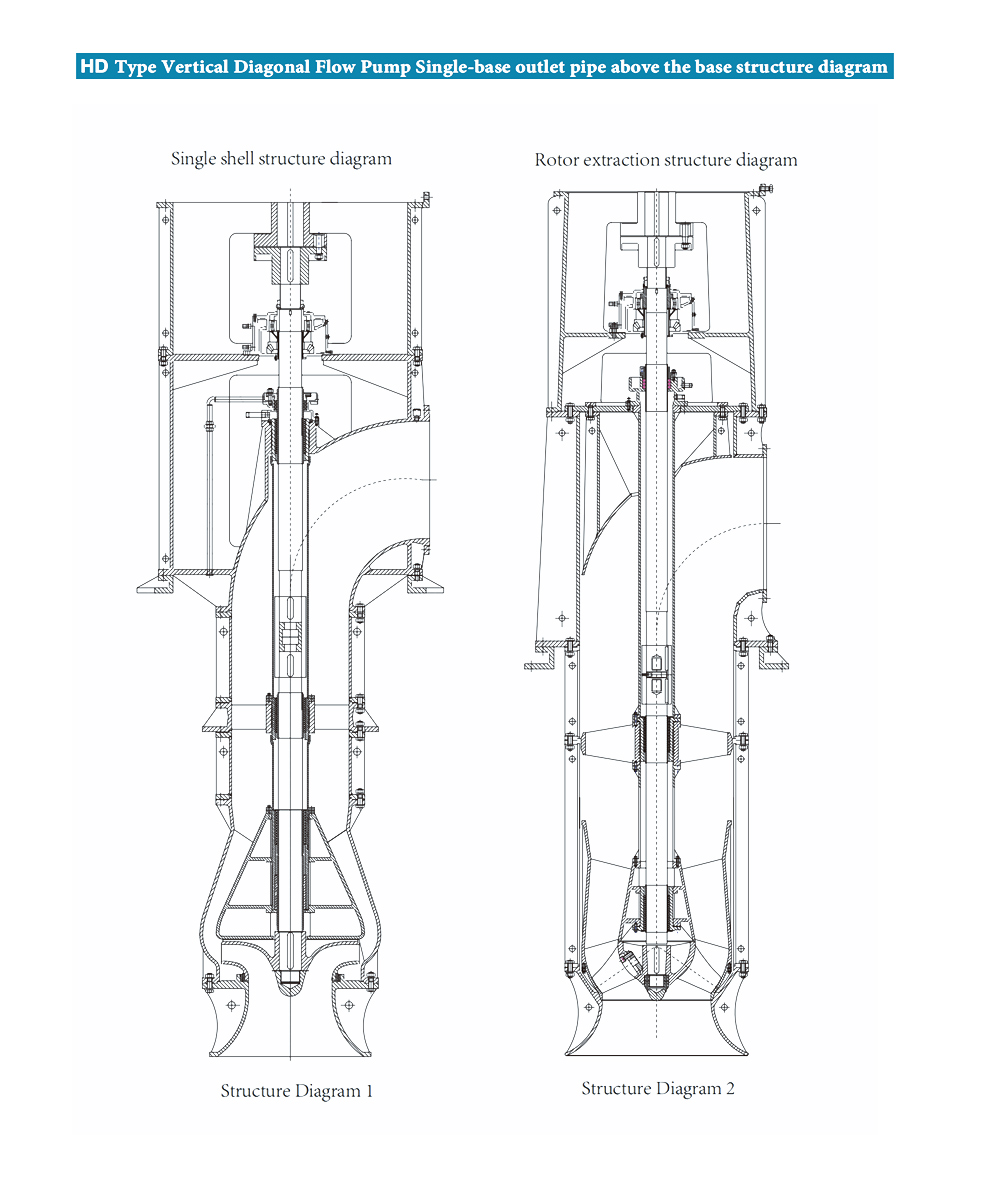

    Technical Drawings

    Product Tags

    HD Series Vertical Diagonal Flow Pump CN

    Advantages

    1. Safe and reliable, long service life

    2. The pump efficiency is high, its efficiency is between 85%-90%, and the high efficiency area is wide

    3. The pump has good cavitation performance and small excavation depth

    4. The pump shaft power curve is relatively smooth, and the pump is not prone to overpower due to the deviation of working conditions during operation.

    5. The volume is small, the area is small, and the water inlet channel is easy to construct.

    6. Reasonable structure, convenient assembly and disassembly, no need to pump water for rotor maintenance, which is convenient for maintenance.


  • Previous:
  • Next:

  • HD-Type-Vertical-Diagonal-Flow-Pump-Technical-Drawings_03 HD-Type-Vertical-Diagonal-Flow-Pump-Technical-Drawings_00 HD-Type-Vertical-Diagonal-Flow-Pump-Technical-Drawings_01 HD-Type-Vertical-Diagonal-Flow-Pump-Technical-Drawings_02
