KQWH Series Single Stage Horizontal Chemical Pump

Suitable Applications:

Chemical engineering,conveying for oil products, food, beverage, medicine,paper making,water treatment,environmental protection,some of acid, alkali, salt etc.

Working Parameters:

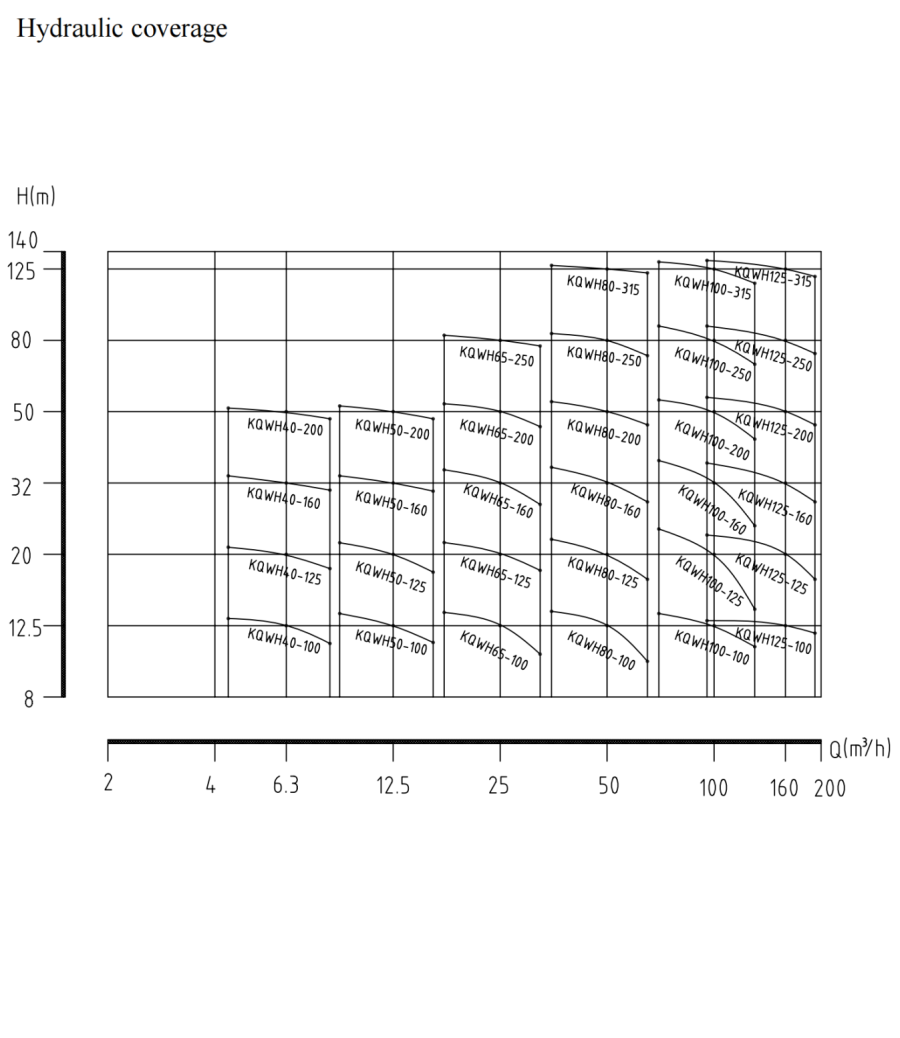

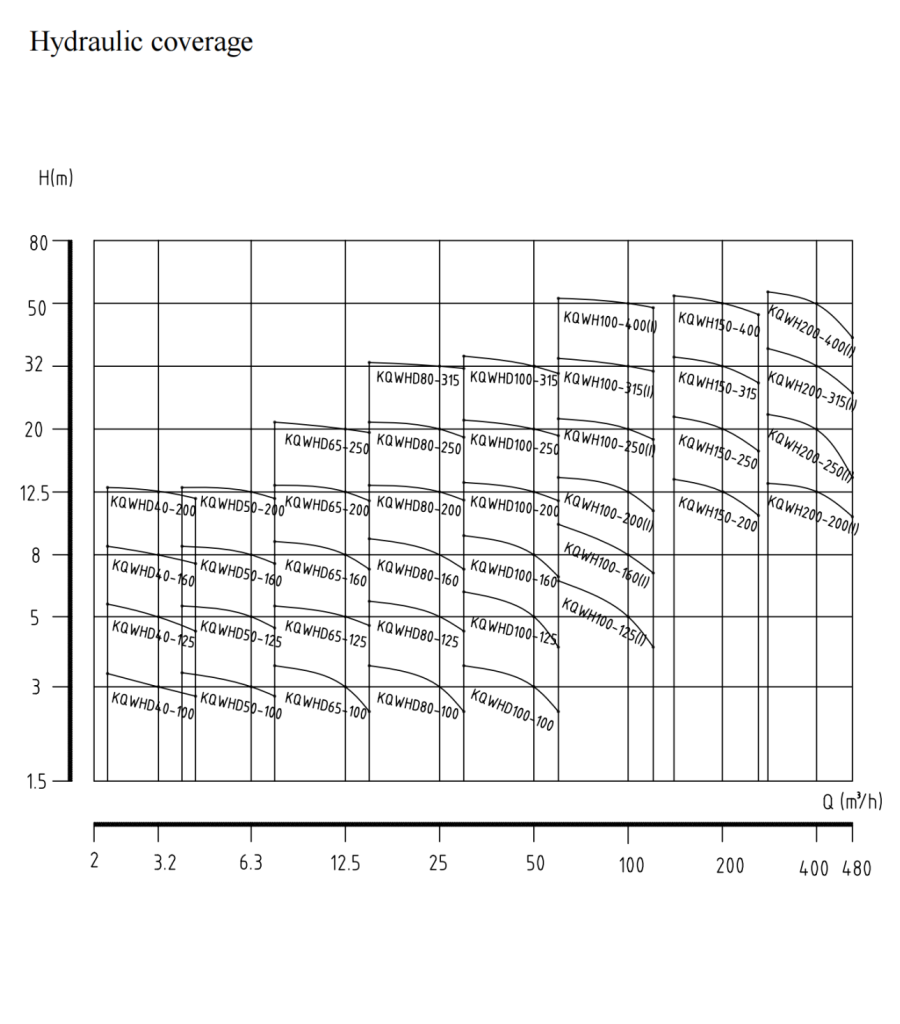

  • Flow: 2.2-480m3/h
  • Head: 2.8-129m
  • Motor power: 0.12-90kW
  • Speed: 1480r/min or 2960r/min
  • Maximum working pressure: ≤1.6MPa
  • Medium temperature: -10℃~80℃
  • Product Detail

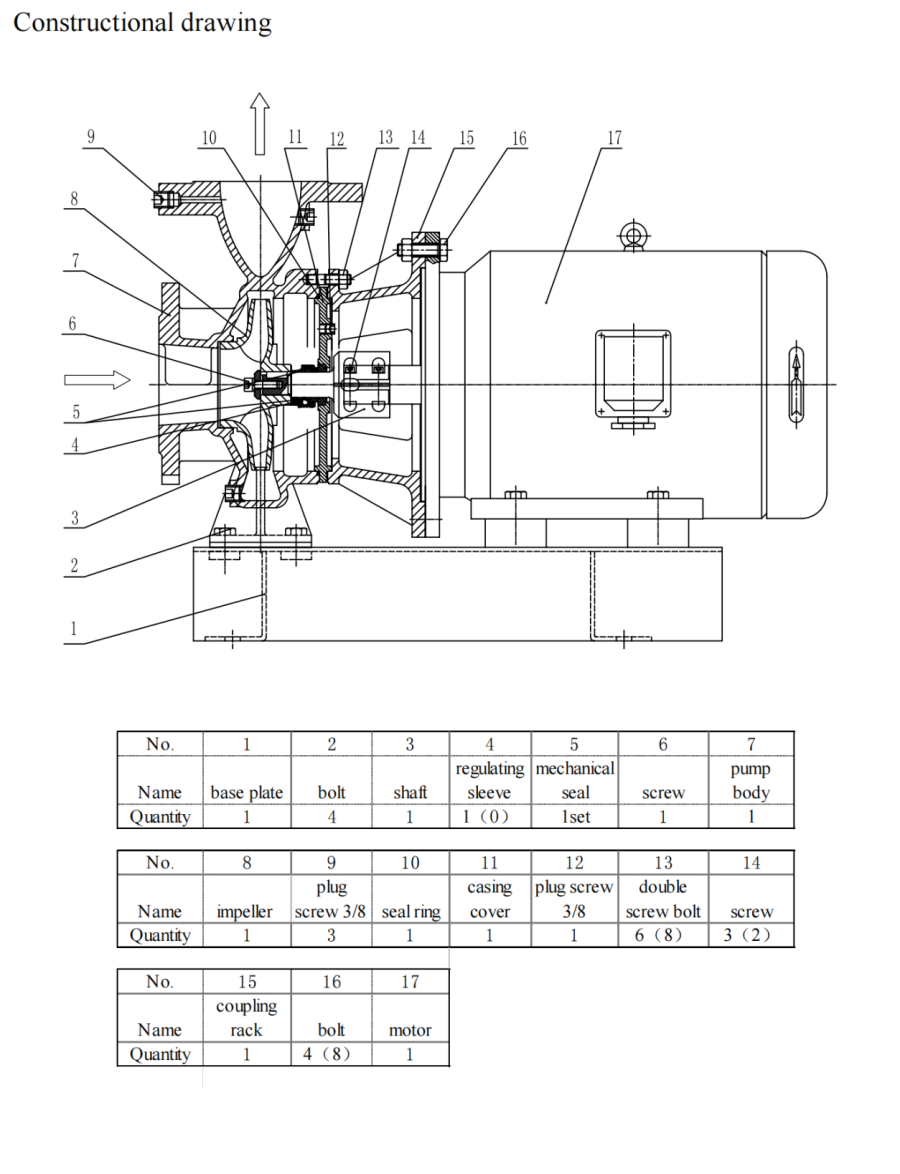

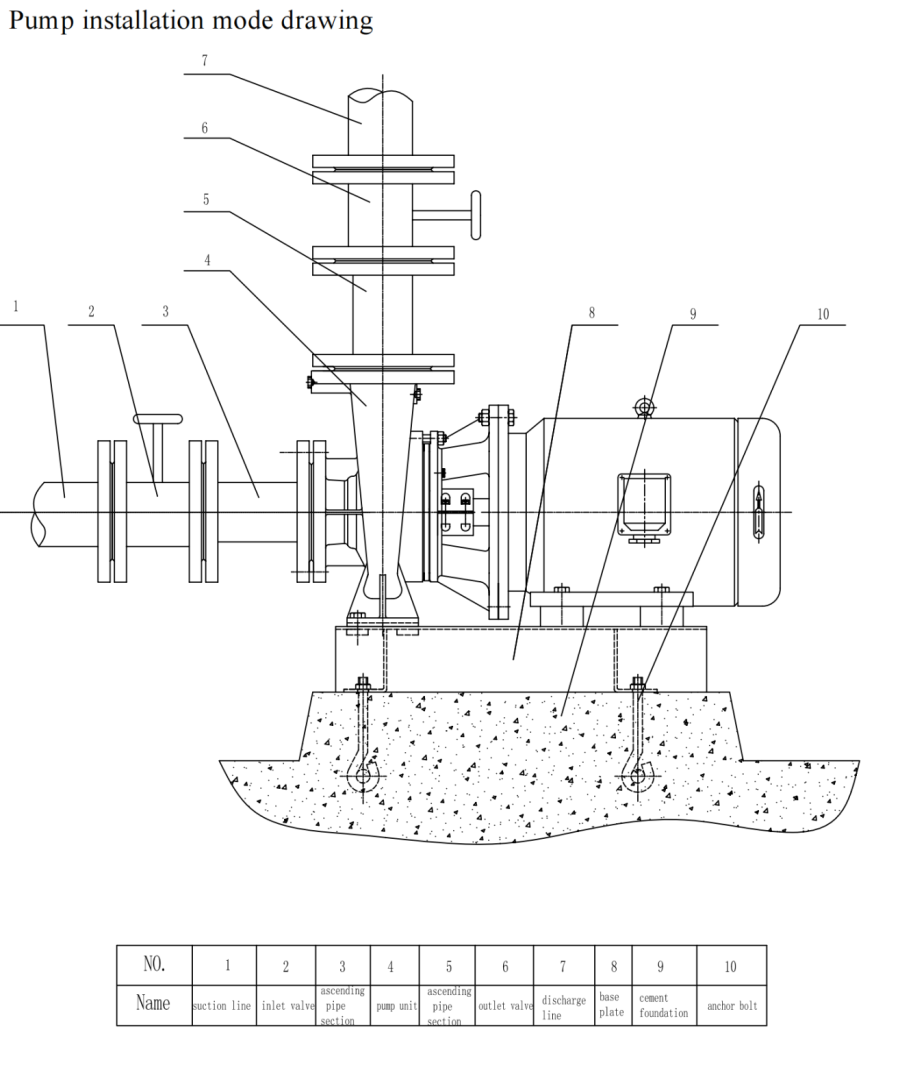

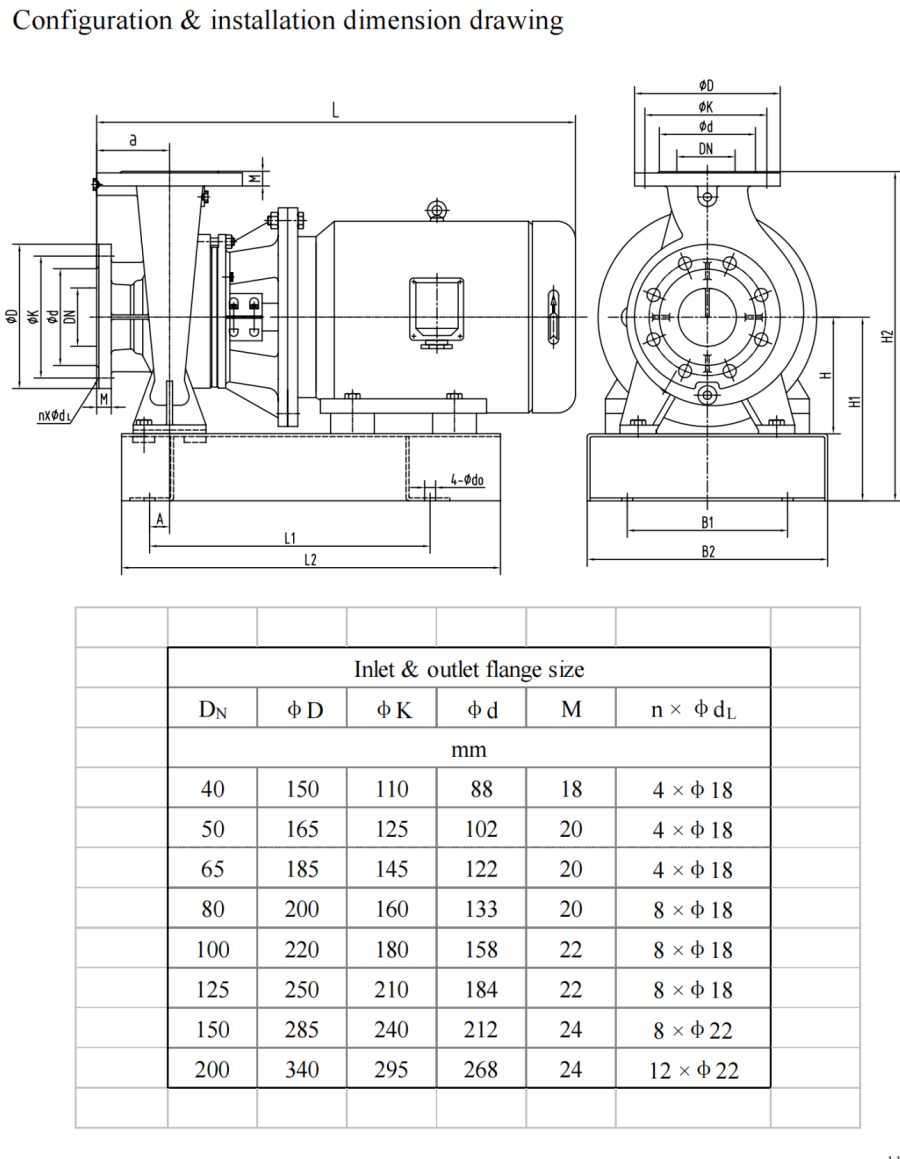

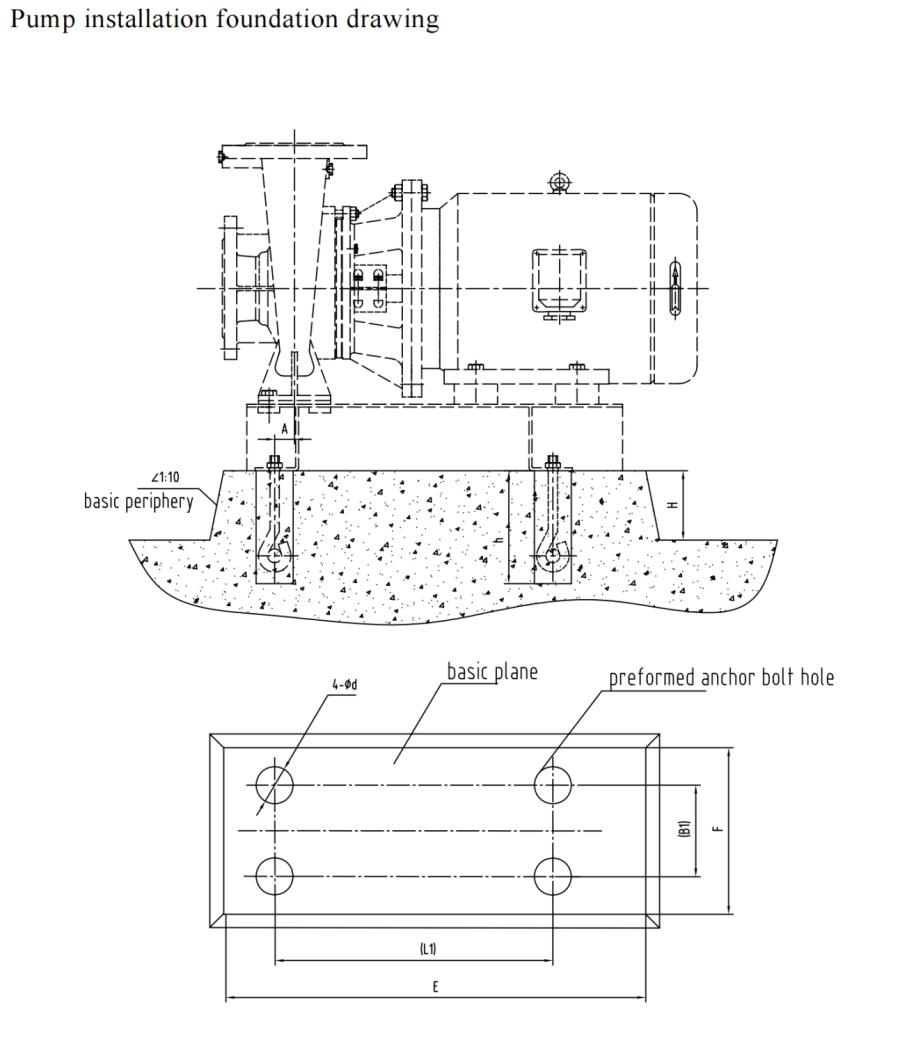

    Technical Drawings

    Product Tags

    KQWH Series Single Stage Horizontal Chemical Pump


    1. This series horizontal centrifugal pumps are horizontal, radial split, open-back, single stage, single suction, volute centrifugal pumps. The impeller construction is closed type. The construction of pump volute is axial suction, discharge on the top and footing support.

    2. This single stage centrifugal pumps may disassemble rotator parts for overhaul without moving casing and inlet outlet connection pipeline.

    3. The centrifugal pump manufacturer--Kaiquan Pump adopt split shaft design, which fundamentally avoid corrosion damage for motor shaft, and thoroughly ensure the stable and reliable running of motor over a long time.

    4. This series centrifugal pumps adopt internal type, single end face and unbalanced type mechanical seal.

    5. Reliable and novel pump shaft construction of this series horizontal end suction chemical pumps may easy to choose B35 type standard motor to directly drive pumps.

    6. Construction of this series corrosive liquid chemical pump is very simple and convenient to maintain; once pump shaft need replace, they are easy to disassemble and assemble, and the location is accurate and reliable.

    7. Pump shaft and motor shaft of this series chemical transfer pumps adopt rigid coupling, advanced and reasonable processing assembly technology makes high concentricity, less vibration and low noise for pump shaft.

    8. This series Industrial chemical pumps are integral body, compared with the horizontal chemical pump of general construction, its construction is especially compact, and the floor space of unit reduces a lot.

    Related Key Words:

    Horizontal Chemical Pipeline Centrifugal Pump,Chemical Pump,Industrial Pump For Chemical Industry,Small Chemical Pump,Mining Horizontal Chemical Pump,Industrial Chemical Pumps,Pump Chemical,Stainless Steel Chemical Pump,Chemical Pump For Industry,Single Stage Chemical Pump,End Suction Chemical Centrifugal Pump,Chemical Centrifugal Pump,Centrifugal Chemical Pump,Single-Suction Chemical Centrifugal Pump,Chemical Pump Centrifugal,Stainless Steel Centrifugal Chemical Pump,Chemical Centrifugal Stainless Steel Pumps,etc.

  • Previous:
  • Next:

  • KQWH Technical Drawiings_03 KQWH Technical Drawiings_04 KQWH Technical Drawiings_05 KQWH Technical Drawiings_00 KQWH Technical Drawiings_01 KQWH Technical Drawiings_02
