KQL Direct-coupled in-line Single Stage Vertical Centrifugal Pump

Suitable Applications:

Model KQL are Direct-coupled in-line single stage vertical centrifugal pumps. They are mainly used for the air-conditioning and heating system. The unique structure designing gives it the advantages of high reliability and high efficiency.

Working Parameters:

  • Flow: 8-1400m3/h
  • Head: Max 127m
  • Liquid Temperature: -10 ~80℃ 80~120℃
  • Ambient temperature typically: ≤40℃
  • Rotating speed: 980, 1480 and 2960r/min
  • If you have any special needs: please do not hesitate contact our company.
  • Product Detail

    Technical Drawings

    Product Tags

    KQL Series Single Stage Centrifugal Pump

    Advantages of KQL:

    The outlet diameter and inlet diameter are the same

    SKF bearings, an internationally famous brand, are more stable in operation.

    IP 55 fully closed structure which prevents dust, water drop, rain from the motor.


    High efficiency:

    High-quality mechanical seal makes sure that no leakage, long service life.

    Adopt modern optimal water conservancy model.

    High efficiency three-phase asynchronous motor.

    Related Key Words:

    Single stage centrifugal pump,vertical centrifugal pump,vertical inline centrifugal pump,water pump vertical,vertical high pressure water pump,etc.

    ssc (1)
    ssc (2)

  • Previous:
  • Next:

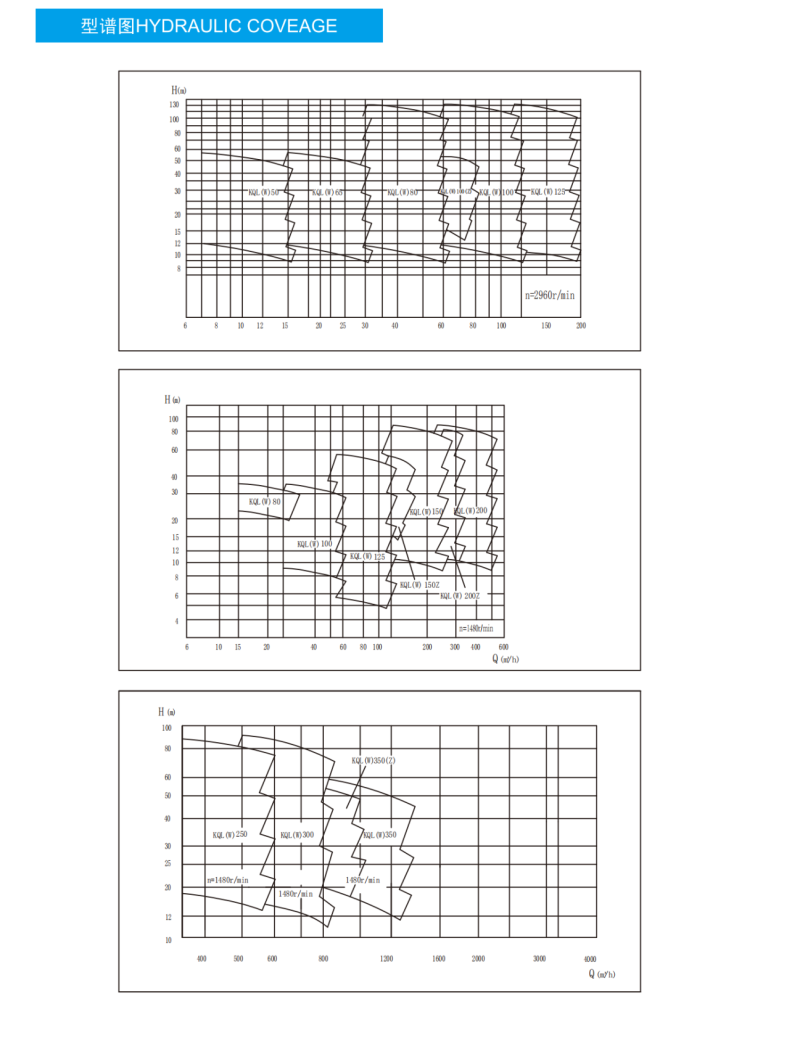

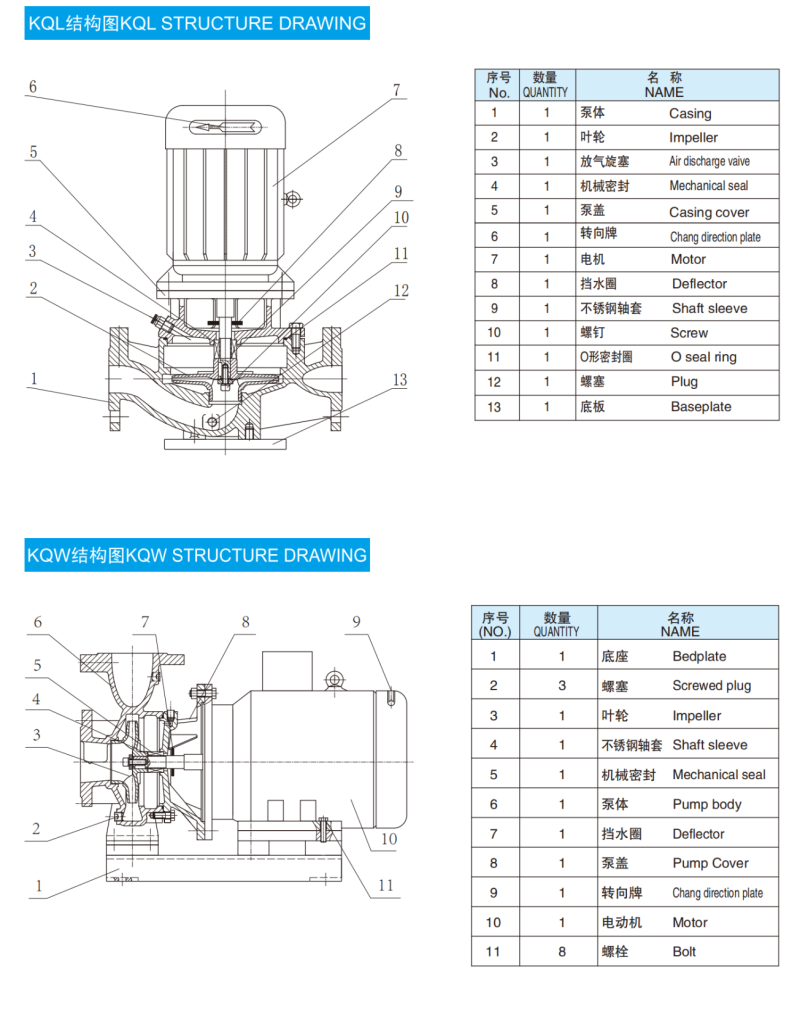

  • 8.KQL、KQW Series Single Stage Centrifugal Pump technical drawings_01 8.KQL、KQW Series Single Stage Centrifugal Pump technical drawings_00
