KQSN Split Case Pump

Suitable Applications:

High-rise water supply, building fire protection, Central air conditioning water circulation, Water circulating water supply in engineering system, Cooling water circulation, Boiler water supply, Industrial water supply and drainage, Irrigation, Water plants, paper plants, power plants, thermal power plants, steel plants, chemical plants, water conservancy projects, water supply in irrigation areas, and so on.

In addition, the use of corrosion-resistant or wear-resistant materials can transport corrosive industrial wastewater, seawater, and rainwater containing suspended solids.


Working Parameters:

  • Flow: 68-6276m3/h
  • Head: 9-306m
  • Inlet and outlet diameters: 150-600mm
  • Liquid Temperature: -120 ~80℃
  • Ambient temperature typically: ≤40℃
  • Rotating speed: 740, 990, 1480 and 2960r/min
  • Product Detail

    Technical Drawings

    Product Tags

    KQSN(S/W) Series Split Case Pump

    Advantages of KQSN:

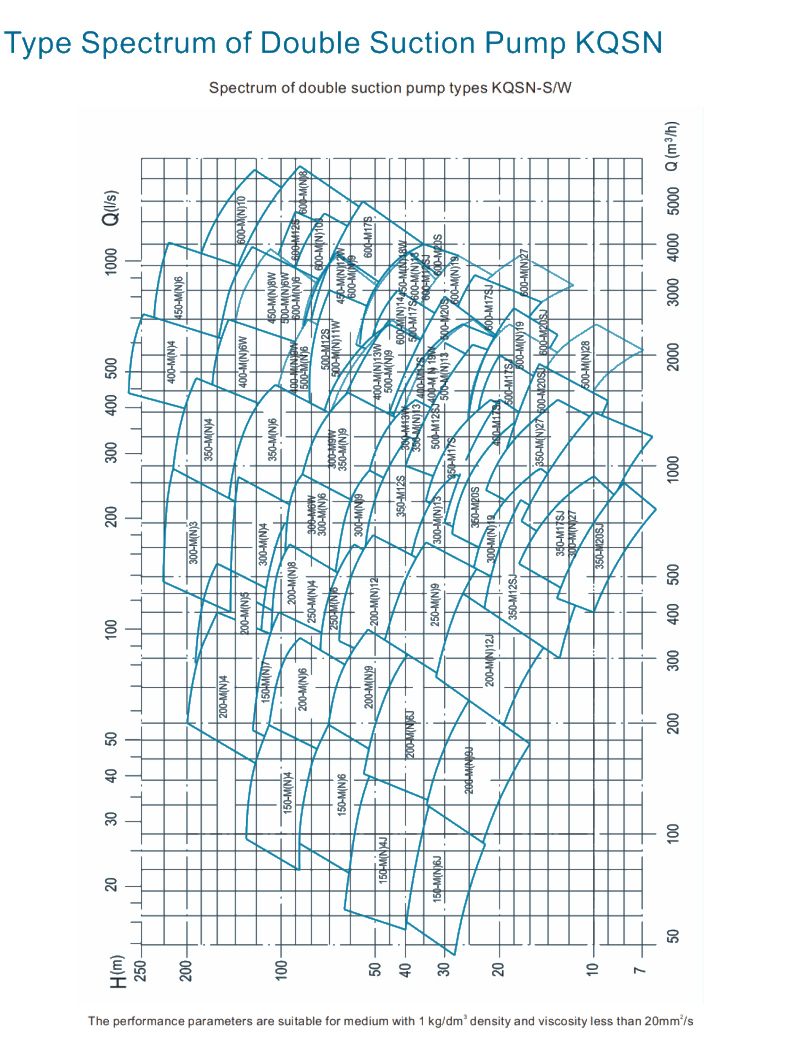

    Lots of performance curves

    Broad spectrum of standard and special material variants

    Shaft sealed by packing seal or mechanical seal

    Comprehensive range of accessories



    Reliable:

    SKF bearings, an internationally famous brand, are more stable in operation.

    Packing seals and mechanical seals are interchangeable with common structures, reducing maintenance costs and reducing production shutdown losses.

    Robust bearings and a rigid shaft ensure smooth operation with low vibration levels and a long service life of bearings, shaft and shaft seals.

    CFD fluid mechanics calculation method can ensure the industry's highest efficiency and best NPSH value.



    Standards:

    KQSN complies with ISO2548C, GB3216C, GB/T5657 standards.

    KQSN complies with CE standard.

    Related Key Words:

    Split case centrifugal pump,horizontal split case centrifugal pump,axial split case centrifugal pumps,centrifugal fire pump split case,double suction centrifugal pump,single stage double suction centrifugal pump,double suction impeller centrifugal pump,etc.

    KQSNSW-Double-Suction-Pumpφ150-φ6008(N)
    KQSNSW-Double-Suction-Pumpφ150-φ60012(N)
