Compressors

Suitable Applications:

This product is widely used in industrial sectors such as papermaking, cigarettes, pharmacy, sugar making, textile, food, metallurgy, mineral processing, mining, coal washing, fertilizer, oil refining, chemical industry, electric power and electronics. Used for vacuum evaporation, vacuum concentration, vacuum regaining, vacuum impregnation, vacuum drying, vacuum smelting, vacuum cleaning, vacuum handling, vacuum simulation, gas recovery, vacuum distillation and other processes, used to pump insoluble in water, not containing the gas of solid particles makes the pumped system form a vacuum. Because the gas suction is isothermal during the working process. There are no metal surfaces rubbing against each other in the pump, so it is very suitable for pumping gas that is easy to steam and explode or decompose when temperature rises.


Working Parameters:

  • Air volume range: 3000-72000m3/h
  • Pressure range: 160hPa-1013hPa
  • Temperature range: Pumping gas temperature 0℃-80℃; Working fluid temperature 15℃ (range 0℃-60℃)
  • Allow transport medium: Does not contain solid particles, insoluble or slightly soluble gas in the working fluid
  • Speed: 210-1750r/min
  • Import and export path: 50-400mm
  • Product Detail

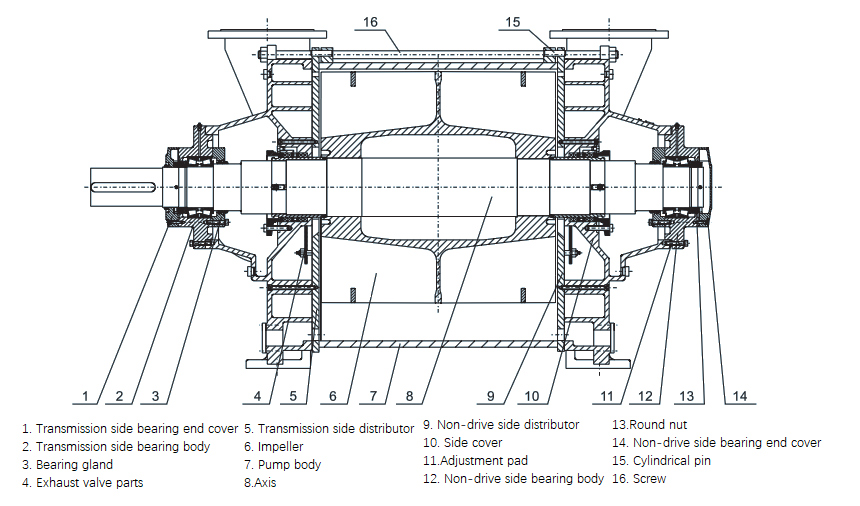

    Technical Drawings

    Product Tags

    Compressors CN

    Compressors Advantages:

    1. Significant energy saving effect

    The optimized hydraulic model design greatly improves the operating efficiency of the pump in the 160-1013hPa region, so it is more efficient and energy-saving.



    2. Smooth operation and high reliability

    Optimized hydraulic design, the impeller adopts a larger width-to-diameter ratio, so that the pump has higher efficiency than other series pumps when obtaining the same pumping volume. At the same time, the simple structure design makes the pump operation more stable and reliable, and the noise is lower.



    3. Outstanding structural advantages

    Single-stage single-acting horizontal structure, simple and reliable, easy to maintain. The pump body structure with baffle can make one pump meet the requirements of two working conditions.



    4. Strong adaptability

    In order to meet different anti-corrosion requirements, the flow parts can be made of corresponding stainless steel materials. The flow parts are sprayed with a polymer anti-corrosion coating to meet the requirements of strong corrosion. The shaft seal has packing and mechanical seal options to meet the requirements of different working conditions




  • Previous:
  • Next:

  • 2BEK-Vacuum-Pump1
